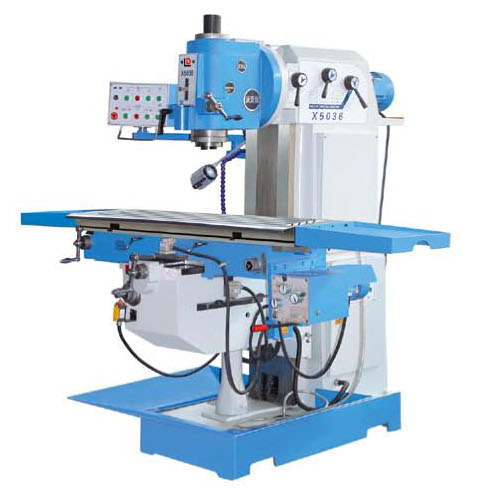

X5036B立式銑床
聯系電話：0632-3951282
歡迎訪問山東魯?shù)现毓C(jī)械有限公司官方網站！
0632-3951282
tzludi@126.com
workbench X, 丫 are automatically feed Z is electric lift
X, 丫，Z three rail VHF hardening
X, 丫，Z three into rail centralized lubrication
主要技術參數 | Specification | X5036B |
主軸內孔錐度 | Taper of spindle bore | 7 : 24 ISO 50 |
主軸行程 | Spindle stroke | 80 |
主軸端面至工作臺距離 | Distance spindle nose to table | 60-540 |
主軸孔中心至懸梁平面距離 | Spindle center to hang himself from the plane | 325 |
主軸轉速范圍 | Spindle speed range | C12級）60-1700 |
工作臺尺寸 | Table size | 1500x360 |
工作臺行程 | Table travel | 1000x320 |
電動機功率 | Motor Power | 4(5)/0.75/l.l/0.09 |
夕卜型尺寸 | Dimensions | 2200x2600x1880 |
凈重/毛重 | NW/GW | 2400/2600 |
